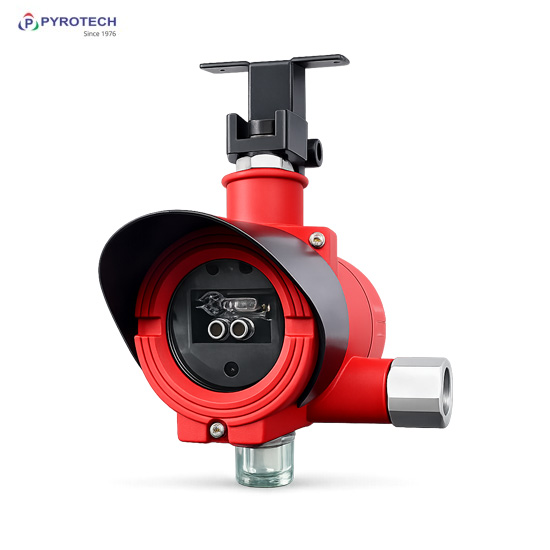

UV/IR Flame Detector | PEPL-UVIR2-V2

The PEPL-UVIR2-V2 is an advanced Explosion-Proof UV/IR Flame Detector engineered with dual-spectrum ultraviolet and infrared sensing technology for rapid, accurate, and highly reliable flame detection. Integrated with a high-speed 32-bit microprocessor and intelligent patented signal processing algorithm, the detector effectively eliminates false alarms caused by sunlight, welding, and other unwanted radiation sources. Its high-performance narrow-band IR sensor and “Sunlight Blind” UV sensor ensure superior sensitivity, stability, and dependable operation in demanding industrial and hazardous environments.

Specification

• Model : PEPL-UVIR2-V2
• Operating Voltage : 18 to 24 VDC
• Operating Current (Relay Output) : Monitor: 25mA / Alarm: 35mA
• Operating Current (Current Loop Output) : Monitor: 30mA / Alarm: 45mA
• Detection Angle & Range : 120° / Up to 40m
• Relay Output : Fault, Fire Alarm
• Current Loop Output : Fault: <2mA / Normal: 5mA / Alarm: 15mA
• Spectrum Range : UV: 185–260nm / IR: 4.3–5.0μm
• Protection Class : IP66 / IP67
• Status Indicators : Fire, Fault, Normal
• Reset Methods : Power Reset, Remote Reset, Communication Reset
• Operating Temperature : -40°C to +70°C (-40°F to 158°F)
• Ambient Temperature : -10°C to +55°C (14°F to 131°F)
• Humidity Range : 0–96% RH, Non-Condensing
• Housing Material : Cast Aluminum
• Housing Finish : Corrosion-Resistant Insulated Coating
• Housing Color : Red
• Electrical Interface : 1 × 3/4 NPT, G3/4, M25×1.5 (Optional)
• Weight : Approx. 1 Kg
