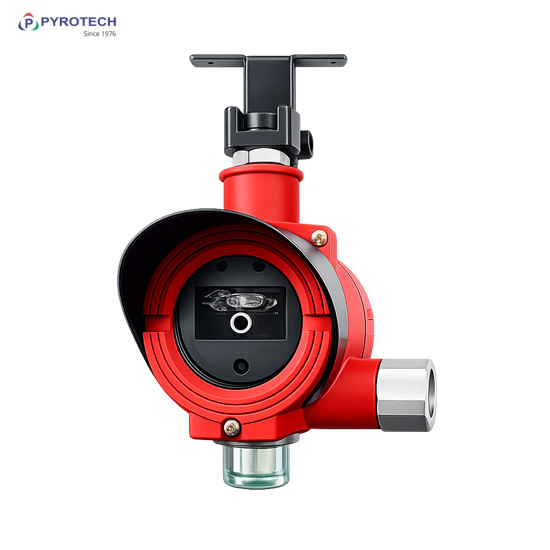

UV/IR Flame Detector | PEPL-UVIR-V1

The PEPL-UVIR-V1 is an advanced UV/IR Flame Detector designed for fast and reliable flame detection in hazardous industrial environments. It combines ultraviolet and infrared sensing technologies with intelligent signal processing to minimize false alarms caused by sunlight, welding, and other unwanted light sources. Its robust industrial design, high sensitivity, and rapid response capability make it suitable for AFR plants, oil & gas facilities, conveyor systems, and other heavy industrial applications.

Specification

• Model : PEPL-UVIR-V1
• Operating Voltage : 24 VDC
• Working current : current≤25mA, alarm current≤35mA
• Detection Angle & Range : 100° / Up to 35m
• Response Time : <5s
• Current Loop Output : Fault: <2mA / Normal: 5mA / Alarm: 15mA
• Spectrum Range : UV: 185–260nm / IR: 4.4μm
• Protection Class : IP67
• Mounting : Wall / Ceiling
• Detection distance : Class1
• Operating Temperature : -40°C to +70°C (-40°F to 158°F)
• Ambient Temperature : -10°C to +55°C (14°F to 131°F)
• Humidity Range : 0–95% RH, Non-Condensing
• Housing Material : Cast Aluminum
• Housing Finish : Corrosion-Resistant Coating
• Housing Color : Red
• Weight : Approx. 1 Kg
