What is an On Load tap Changer (OLTC)?

An On Load Tap Changer (OLTC) is a device installed in power transformers that allows a change in the transformer winding taps when the transformer is energised and loaded. It is applied in order to control the output voltage to keep it within a predetermined range regardless of changes in the input voltage or load requirement. OLTC is based on a tap-to-diverter switch design that is able to switch current between taps without breaking the supply. This guarantees the sustenance of power and enhanced voltage stability of electrical power systems.

Why OLTC Monitoring is so Crucial?

Electricity transformers are the building blocks of electrical grids and ensure uniformity in the supply of voltage in various load conditions. The On-Load Tap Changer (OLTC) is considered among the most significant portions of them as they are needed to regulate voltage. OLTCs are, however, some of the most open elements of the transformer as well. Due to this, the sustained efficiency and dependability of the system necessitate vigilant attention.

OLTC Use in Voltage Regulation

OLTCs are set up to regulate the transformer output voltage in accordance with the varying load requirements. In this way, they assist in stabilising the voltage, avoiding fluctuations of the power supply, and ensuring the constant availability of electricity. A failure in the OLTC may cause stuttering voltage levels, and this can cause damage to equipment and disruption in the grid.

High Failure Rates and the Need for Monitoring

The switching operations performed on OLTCs are regular and aimed at controlling the voltage; thus, they are open to mechanical damage and wear. The OLTCs are among the most frequently failed components of the transformers, and it can be very expensive and time-consuming to repair them and get the power flowing again.

A significant number of OLTCs in operation currently are dependent on aged technologies, which are not modern in diagnostic capability. Ageing systems are more likely to be damaged by mechanical effects, and hence, there is a necessity for real-time observation to identify the initial signs of malfunction.

Condition-Based Maintenance: A Smarter Approach

The conventional approach to maintenance is time-driven, resulting in early or late service. Online OLTC monitoring can, however, facilitate condition-based maintenance, in which servicing is done when required. This active method is beneficial:

  • Detect possible flaws in advance before they result in failures

  • Minimised unplanned outages and enhanced grid reliability

  • Enhance maintenance resource optimisation and minimize costs of operation

Important OLTC Monitoring Parameters

Some of the key parameters that should be monitored in the process of effective OLTC monitoring include:

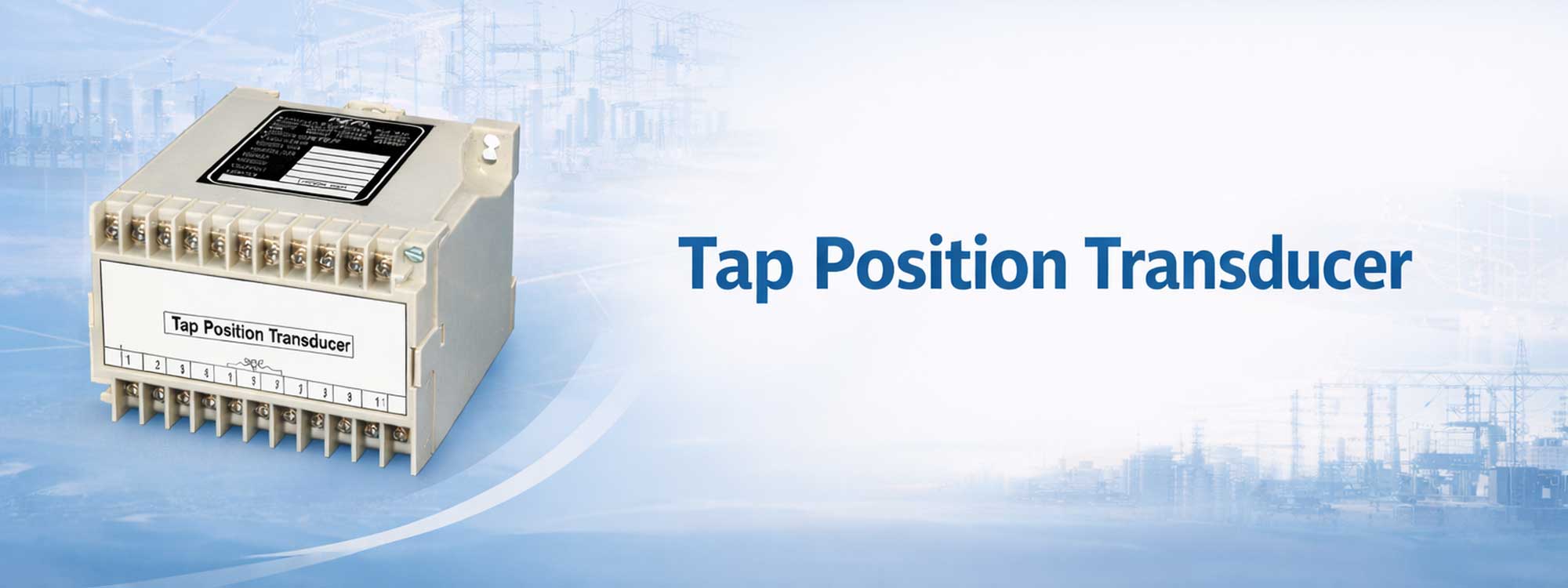

  • Tap Position Tracking: Checks whether the OLTC is running as intended and safely.

  • Differential Temperature Monitoring: Compare the temperature of the OLTC and the transformer tank. Overheating signs can be used to indicate potential overheating problems in the tank, which is a major indicator of failure.

  • Contact Wear Assessment: OLTC contacts wear out with time, and wear monitoring aids in predicting when maintenance is required before hardware failures take place.

Preventive Action and Long-Term Benefits

Introducing the new level of OLTC monitoring helps utilities to identify the changes, such as anomalies in temperature spikes, wear on contacts, or the irregular operations of taps. Early detection of these warning signs will allow operators to implement preventative actions, which will save them time and will prolong the life of the transformer.

Pyrotech On Load Tap Changer (OLTC)

The Pyrotech On Load Tap Changer (OLTC) is an advanced solution designed for precise voltage regulation in power transformers without interrupting the electrical supply. It ensures stable output voltage under varying load conditions, enhancing grid reliability and power quality. Engineered for durability and efficient performance, Pyrotech OLTC systems are widely used in substations, power plants, and industrial power distribution networks.

Frequently Ask question (FAQs)

  1. What is an OLTC in a transformer?

An on-load tap changer (OLTC) is an apparatus of transformers that varies the output voltage during the operation of the transformer to maintain stable voltages.

  1. What is the importance of OLTC monitoring?

Wear and tear can be detected through OLTC monitoring, unexpected failures will be prevented, and condition-based maintenance will be possible, decreasing downtime and repair expenses.

  1. What parameters are checked in OLTCs?

Such parameters as the location of the tap, temperature variations, and contact wear are critical parameters that can be used to detect faults early and schedule maintenance.

  1. What is the effect of OLTC monitoring otransformerhe lirs?

Monitoring eliminates significant failures by detecting their early signs, thereby eliminating problems in time and allowing the transformer to operate without failures, and increasing the service life.

  1. Will OLTC monitoring save on maintenance expenses?

Yes, it facilitates proactive maintenance, unnecessary servicing and emergency repair costs will be minimised, and this will save lots of money.
