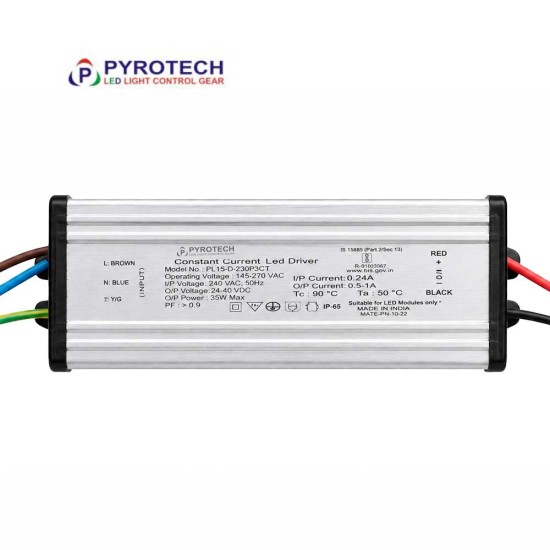

36W LED Driver
36W LED Driver

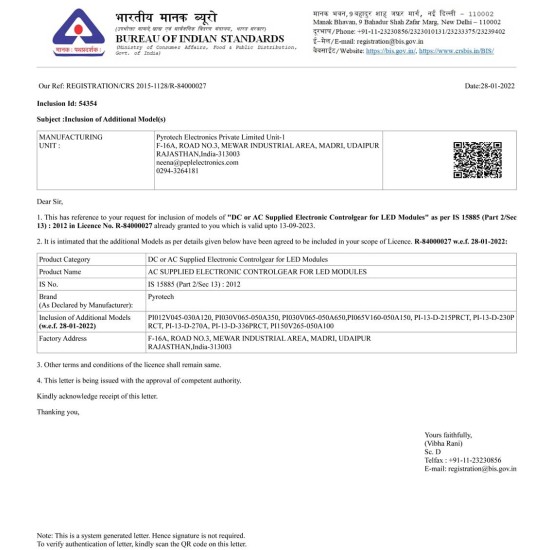

The Industrial Constant Current LED Driver is a reliable LED Power Supply, LED Ballast, and LED Light Control Gear engineered to deliver consistent current for high-performance LED lighting systems. Supporting 145–270V AC input with 24–40V DC (700mA) and 70–90V DC (300mA) outputs, it offers IP65 protection, 4kV surge immunity, Power Factor >0.95, and THD <10% for stable, energy-efficient operation. Manufactured by a BIS-certified company and compliant with IEC 61347-2-13 and EN61000 standards, this waterproof LED driver is an ideal choice for industrial, commercial, and outdoor lighting installations.
Benefits of CC LED Driver
- IP65-rated waterproof LED Driver for indoor and outdoor applications
- 4kV differential mode surge protection against voltage spikes
- Overvoltage, undervoltage, overload, and short circuit protection
- Reverse polarity and thermal foldback protection
Application Areas of CC LED Driver
- LED Street Lights
- LED Flood Lights
- LED High Bay Lights
$0.00
Ex Tax: $0.00
- Stock: In Stock
- Model: PI-13-D-215PRCT

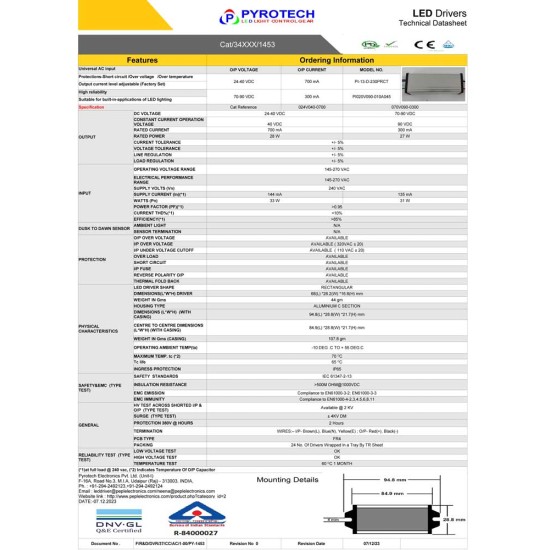

Technical Specifications
| Physical Characterstics | |
| Dimension (L x W x H) | 95(L) * 29(W) * 22(H) mm |
| Power Details | |
| Input Voltage | OPERATING VOLTAGE RANGE 145-270 VAC |
| Output Voltage | DC VOLTAGE 24-40 VDC |
| Power Consumption | WATTS (Pn) 36W |
| Output Current | RATED CURRENT 1 A |
