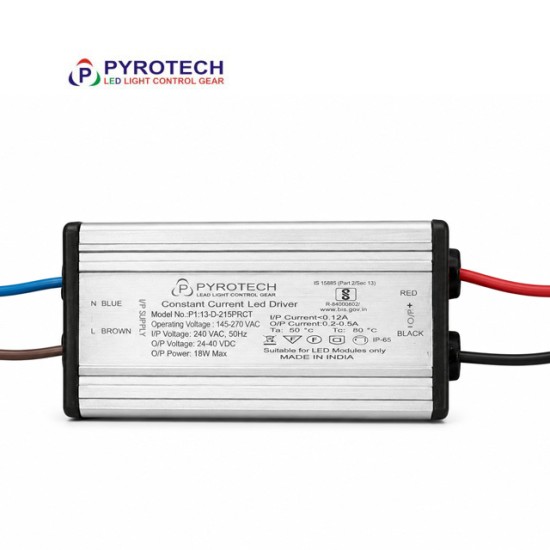

18W Constant Current LED Driver

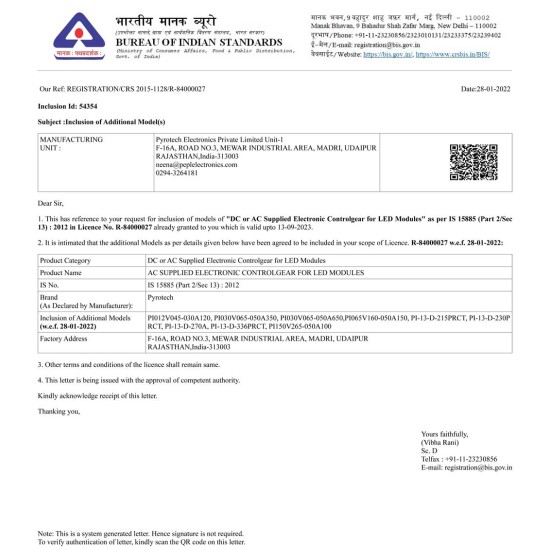

The Constant Current LED Driver, also known as an LED Ballast or LED Light Control Gear, is a high-efficiency industrial LED driver designed for reliable indoor and outdoor lighting applications. Featuring a 145–270V AC universal input, 24–40V DC output, and 400mA constant current, our LED Drivers are manufactured according to BIS standards, meeting stringent quality, safety, and performance standards for industrial and commercial lighting applications. Ideal for industries like oil & Gas, chemical, fertiliser, cement, etc., this IP - 65 rated waterproof LED driver ensures dependable operation even under challenging electrical conditions.
18W Constant Current LED Driver Benefits
- IP65-rated waterproof enclosure for reliable indoor and outdoor installations
- 4kV differential mode surge protection against lightning and voltage spikes
- Overvoltage, under voltage, overload, short circuit, reverse polarity, and thermal foldback protection
- High efficiency (>85%) with low heat generation for energy savings
- High Power Factor (>0.95) and Low THD (<10%) for improved power quality
Application Areas of 18W Constant Current LED Driver
- LED Street Lights
- LED Flood Lights
- LED High Bay Lights
- Tunnel Lighting
- Warehouse Lighting
- Bollard Light
- Factory & Industrial Lighting
$0.00
Ex Tax: $0.00
- Stock: In Stock
- Model: PI-13-D-215PRCT

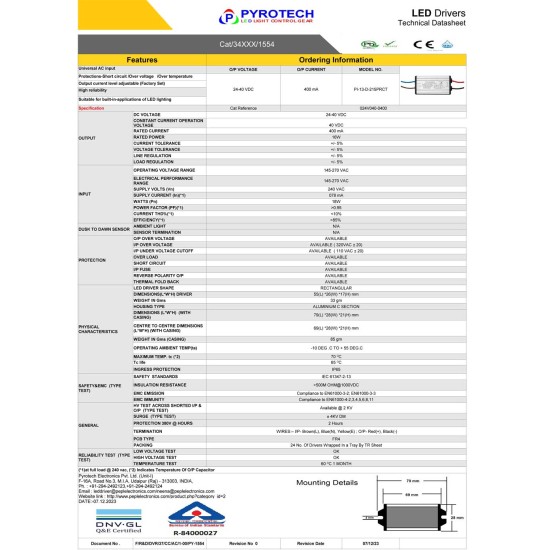

Technical Specifications
| Technical Data | |
| Dimension (basic housing) (mm) | 79(L) *28(W) *21(H) mm |
| Power Details | |
| Input Voltage | OPERATING VOLTAGE RANGE 145-270 VAC |
| Output Voltage | DC VOLTAGE 24-40 VDC |
| Power Consumption | WATTS (Pn) 18W |
| Output Current | RATED CURRENT 400 mA |
