4 Wire Smoke Detector With Relay Output
4 Wire Smoke Detector With Relay Output

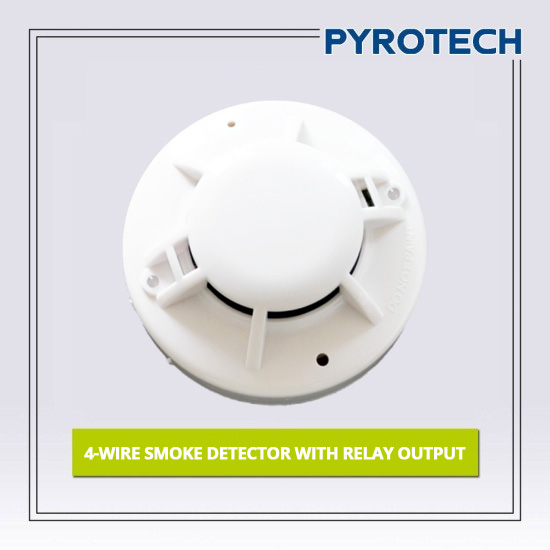

The 4 Wire Smoke Detector with Relay Output is a photoelectric smoke detector designed for early fire detection and reliable fire protection in residential, commercial, and industrial environments. Compatible with fire alarm panels, security alarm systems, and Building Management Systems (BMS), it delivers dependable smoke detection, enhances life safety, and helps protect people, property, and valuable assets.
Features
- Photoelectric smoke detection for fast and reliable fire detection
- Built-in relay output for seamless integration with fire alarm and security systems
- Compatible with fire alarm panels, security alarm systems, and Building Management Systems (BMS)
- Easy to install, low maintenance, and designed for long-term reliable performance
- Ideal for residential, commercial, and industrial fire detection applications
$0.00
Ex Tax: $0.00
- Stock: In Stock
- Model: 4 Wire Smoke Detector With Relay Output
Technical Specifications
| Module | |
| Dimension / LWH | 103mm, 55 mm |
| Operating Temperature | -10°C to 50°C |
| Weight | 155 g |
| Product Data | |
| Rating | 2A@24VDC |
| Product Details | |
| Alarm Current | 45 mA @ 12VDC |
| Operating Humidity Range | 10% to 93% Relative Humidity, Non condensing |
| Smoke Sensitivity | 1.06±.26%FT |
| Alarm Mode | Reset by momentary power interruption |
| Supply | 12 VDC (9V~ 28VDC) |
| Technical Details | |
| Standby Current | 200 μA |
